High Efficiency Mini diesel Concrete Pump Diesel Concrete Trailer Pump with Remote Concrete Pump Construction Machinery

Name: High Efficiency Mini diesel Concrete Pump Diesel Concrete Trailer Pump with Remote Concrete Pump Construction Machinery
Brand: HENGYOU
Price: 1 USD

China High Efficiency Mini diesel Concrete Pump Diesel Concrete Trailer Pump with Remote Concrete Pump Construction Machinery wholesale

Power Type : Diesel

Place of Origin : Henan, China

Brand Name : HENGYOU

Weight : 5000 kg

Dimension(L*W*H) : 11055X2510X3830

Warranty : 1 Year

UNIQUE SELLING POINT : High operating efficiency

Max. vertical conveying distance : 200m

Max. horizontal conveying distance : 400m

Productivity : 90m3/h

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Engine

Condition : New

Showroom Location : None

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Applicable Industries : Building Material Shops

Contact Now

High Efficiency Mini diesel Concrete Pump Diesel Concrete Trailer Pump with Remote Concrete Pump Construction Machinery

item	value
Place of Origin	Henan China
Condition	New
Brand Name	HENGYOU
Marketing Type	New Product 2023
Product name	concrete pump
Power type	Electric Diesel
UNIQUE SELLING POINT	Fully hydraulic system
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Application	General Construction Sites

1.The special pouring pump for secondary structure fine stone mortar can realize the transportation of fine stone concrete and
mortar for long-distance high-rise buildings. 2.The distribution valve adopts advanced S-tube valve, which has good sealing
performance and simple and reliable structure.
3.The eye plate (commonly known as wear plate) and floating cutting ring are made of hard alloy, which has good wear resistance,
long service life and convenient replacement. The cutting ring can automatically compensate the gap structure.
4.The machine adopts electric-liquid control mode, with perfect electro-hydraulic overload
protection and instrument display system. It has anti-pump operation function, easy to eliminate blockage fault. The pumping speed
can be adjusted to meet various working conditions.
5.The centralized lubrication system automatically controls the start and stop and running time by the program, effectively
extending the service life of the rotating parts.
6.The electrical components such as the contactor and the push button switch are reliable in operation, the control circuit is
simple, and the electrical box is equipped with a switch for easy operation.
7.The main seals are made of high quality seals to prevent internal and external leakage of the hydraulic system.

Electric control system

The wire remote equipment is convenient for operation far away.Famous brand electronic components are used for our Electric
control system.

Cooling system

The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.

Mechanical system

Make sure the pumping good and decline the phenomenon of pipe jam, spectacles wear plate and cutting ring are made of high wear
cemented carbide materials. This concrete pump machine could work in lower abrasion and extend the components’ usage life span.
spectacles wear plate could be replaced up 30000cbm.

Double open hydraulic loops

With two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as
the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.

GLIENT REVIEWS

FAQ

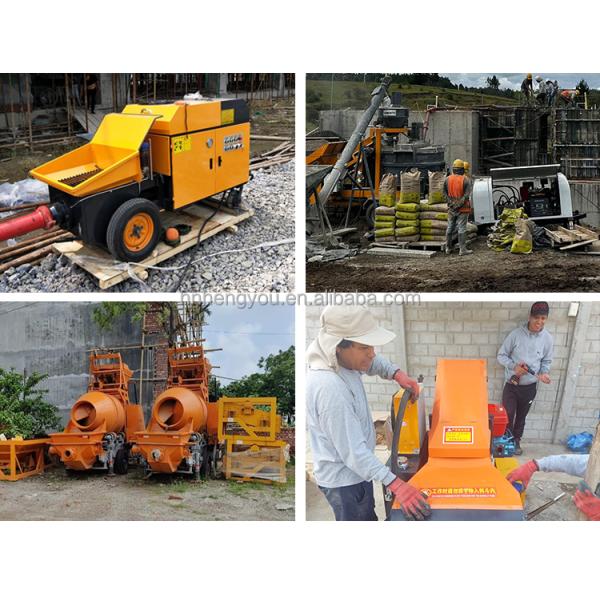

High Efficiency Mini diesel Concrete Pump Diesel Concrete Trailer Pump with Remote Concrete Pump Construction Machinery Images
